Photorealistic 3D Tiles from Google Maps Platform in Cesium for Unreal

This tutorial guides you through importing Photorealistic 3D Tiles into your Cesium for Unreal projects.

The Googleplex in Mountain View, California, USA, visualized with Photorealistic 3D Tiles in Cesium for Unreal.

The Googleplex in Mountain View, California, USA, visualized with Photorealistic 3D Tiles in Cesium for Unreal.

You’ll learn how to:

  • Add Photorealistic 3D Tiles to your Unreal Engine level using the Google Map Tiles API.
  • Use the CesiumGeoreference component to geoposition your scene on the globe.
  • Navigate your scene with Cesium's Dynamic Pawn.

Prerequisites

  • Know how to set up a basic Cesium for Unreal application. Check out our Cesium for Unreal Quickstart guide for instructions on starting with the Cesium for Unreal plugin.
  • A Google Maps API key with access to the Map Tiles API. For more information on creating a key, see here.

1Prepare the level

This tutorial assumes that you have already created a project and installed the Cesium for Unreal plugin. If you have not yet created a project, see the Quickstart for detailed instructions.

1Create a new level by clicking File > New Level. In the window that appears, select Empty Level to start with a blank scene.

2Open the Cesium panel by going to Window > Cesium.

Open the Cesium panel by going to Window > Cesium.

3Add a CesiumSunSky actor to the scene using the "Quick Add Basic Actors" section of the Cesium panel.

Add a CesiumSunSky actor to the scene using the "Quick Add Basic Actors" section of the Cesium panel.

This will also add a CesiumGeoreference actor to the scene.

4If this is your first time using Cesium for Unreal, the scene may appear completely white. You'll fix this in a moment. First, save your scene using the Save icon in the top bar or with Ctrl+S. Give your scene a name.

First, save your scene using the Save icon in the top bar or with Ctrl+S. Give your scene a name.

5CesiumSunSky uses realistic light intensity values, which are much brighter than standard Unreal projects. As a result, the light will wash out scenes and make them appear white. There are two ways to fix this.

a. If you would like to use physically accurate lighting values in your project, you can change a project setting to allow your scene to use brighter lighting values. This is explained in the next step.

b. If you would like to reduce the intensity of the light, click on the CesiumSunSky actor. In the Details panel, find the Directional Light component and reduce the light's Intensity to 10.0.

6You can skip this step if you have changed the light intensity in Step 5. Open your Project Settings by going to Edit > Project Settings. Search in the top bar for Extend Default Luminance Range In Auto Exposure settings. Check the box.

Search in the top bar for Extend Default Luminance Range In Auto Exposure settings. Check the box.

While you’re here, set your new level as the project's default map. This will make sure that your level will automatically open when you restart the project or package and run your application. In the Project Settings window left sidebar, click on Maps & Modes, then look for the Default Maps settings. Change both the Editor Startup Map and the Game Default Map to your new level.

In the Project Settings window left sidebar, click on Maps & Modes, then look for the Default Maps settings. Change both the Editor Startup Map and the Game Default Map to your new level.

7Close the Project Settings window. You should now see a skylike gradient in the viewport. If it still appears white, restart the editor to make sure the settings are applied.

You should now see a skylike gradient in the viewport.

2Add Photorealistic 3D Tiles to your scene

With your new level ready, you can add Photorealistic 3D Tiles in just a few steps.

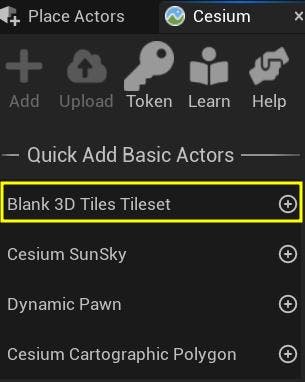

1Add a Blank 3D Tiles Tileset to your scene using the Quick Add section of the Cesium panel.

Add a Blank 3D Tiles Tileset to your scene using the Quick Add section of the Cesium panel.

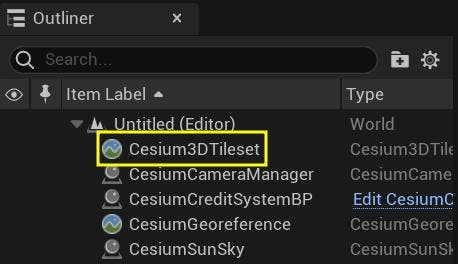

You should see the new Cesium3DTileset actor in the World Outliner.

You should see the new Cesium3DTileset actor in the World Outliner.

2Photorealistic 3D Tiles can be streamed in Cesium for Unreal through a URL containing your Google Maps API key. With your key on hand, copy the following URL and replace MapsAPIKey with your Google Maps API key:

https://tile.googleapis.com/v1/3dtiles/root.json?key=MapsAPIKey

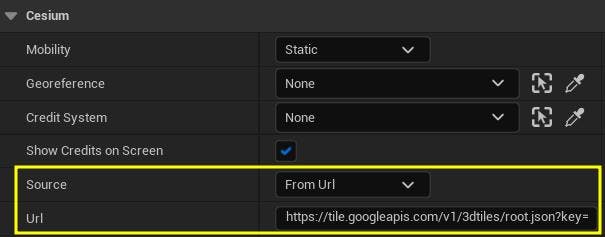

Select the Cesium3DTileset in the World Outliner to view its settings in the Details panel. Set the Source parameter to From Url, then paste the URL you constructed above into the Url field.

Select the Cesium3DTileset in the World Outliner to view its settings in the Details panel. Set the Source parameter to From Url, then paste the URL you constructed above into the Url field.

You should start to see terrain appear as Photorealistic 3D Tiles are streamed into the level.

You should start to see terrain appear as Photorealistic 3D Tiles are streamed into the level.

3Enable Show Credits On Screen on the Cesium3DTileset to comply with the Google Maps Terms of Service.

Enable Show Credits On Screen on the Cesium3DTileset to comply with the Google Maps Terms of Service.

This will display the data attributions at the bottom of the Editor Viewport. These credits will appear on the screen both in the editor and in play mode.

This will display the data attributions at the bottom of the Editor Viewport. These credits will appear on the screen both in the editor and in play mode.

Now you can explore the world of Photorealistic 3D Tiles in the Unreal Editor! If you need help navigating the level with the Editor camera, see Step 7 in the Quickstart tutorial.

3Georeference your level

Before you begin to build applications with Photorealistic Tiles 3D in Unreal Engine, you’ll want to learn to georeference your scene. By default, Unreal Engine does not account for many geospatial variables, such as Earth’s curvature or its radial direction of gravity. However, with Cesium for Unreal’s CesiumGeoreference component, you canposition your scene in a global context so it more smoothly interacts with the local Unreal environment.

1Click on the CesiumGeoreference actor in the World Outliner. In the Details panel, look for the Latitude, Longitude, and Height variables under the Cesium category.

Click on the CesiumGeoreference actor in the World Outliner. In the Details panel, look for the Latitude, Longitude, and Height variables under the Cesium category.

These coordinates currently point to the hills outside Denver, Colorado, USA.

2Change these variables to the coordinates of your favorite city. Since this tutorial uses data streamed through Google, it’s the perfect occasion to visit the Googleplex in Mountain View, California, USA. The Googleplex is located at these coordinates:

Latitude: 37.42207
Longitude: -122.08409
Height: 0.0
Once the georeference changes, you’ll be able to view the Googleplex and surrounding Silicon Valley area.

Once the georeference changes, you’ll be able to view the Googleplex and surrounding Silicon Valley area.

3You can also change the georeference origin by navigating to the desired location with the Editor camera, then clicking Place Origin Here on the CesiumGeoreference.

You can also change the georeference origin by navigating to the desired location with the Editor camera, then clicking Place Origin Here on the CesiumGeoreference.

Read more about georeferencing in Step 3 of the Adding Datasets guide.

4Navigate the world with the Dynamic Pawn

Lastly, let’s learn to navigate Photorealistic 3D Tiles at runtime using the Dynamic Pawn. The Dynamic Pawn is a controller included in the Cesium for Unreal Engine package that will help you navigate Earth's immense size during play mode.

1Using the Cesium panel, add a Dynamic Pawn to your scene.

Using the Cesium panel, add a Dynamic Pawn to your scene.

Make sure its Location is at (0, 0, 0), i.e., the Unreal Engine origin.

2You're ready to test out your scene! Press the Play button at the top toolbar.

You're ready to test out your scene! Press the Play button at the top toolbar.

You can use the W, A, S, and D keys and the mouse to fly around. You can also use the Q and E keys to move the camera vertically with respect to the globe. Use the mouse scroll wheel if you need to change your speed.

For more information about the Dynamic Pawn and navigating global content in your Unreal Engine levels, check out Step 7 of the Quickstart tutorial.

Next steps

Check out our other Cesium for Unreal tutorials to learn how to build apps on top of Google’s global data! You may want to explore Placing Objects on the Globe or Building Global Scenes with Georeferenced Sublevels.
