Working with BIM/CAD Tileset Metadata

Build a category filtering tool that reads design metadata (embedded in a 3D Tiles tileset.json during tiling in the BIM/CAD Tiler with Database), constructs a hierarchical category/subcategory panel, and lets users show or hide groups of features interactively.

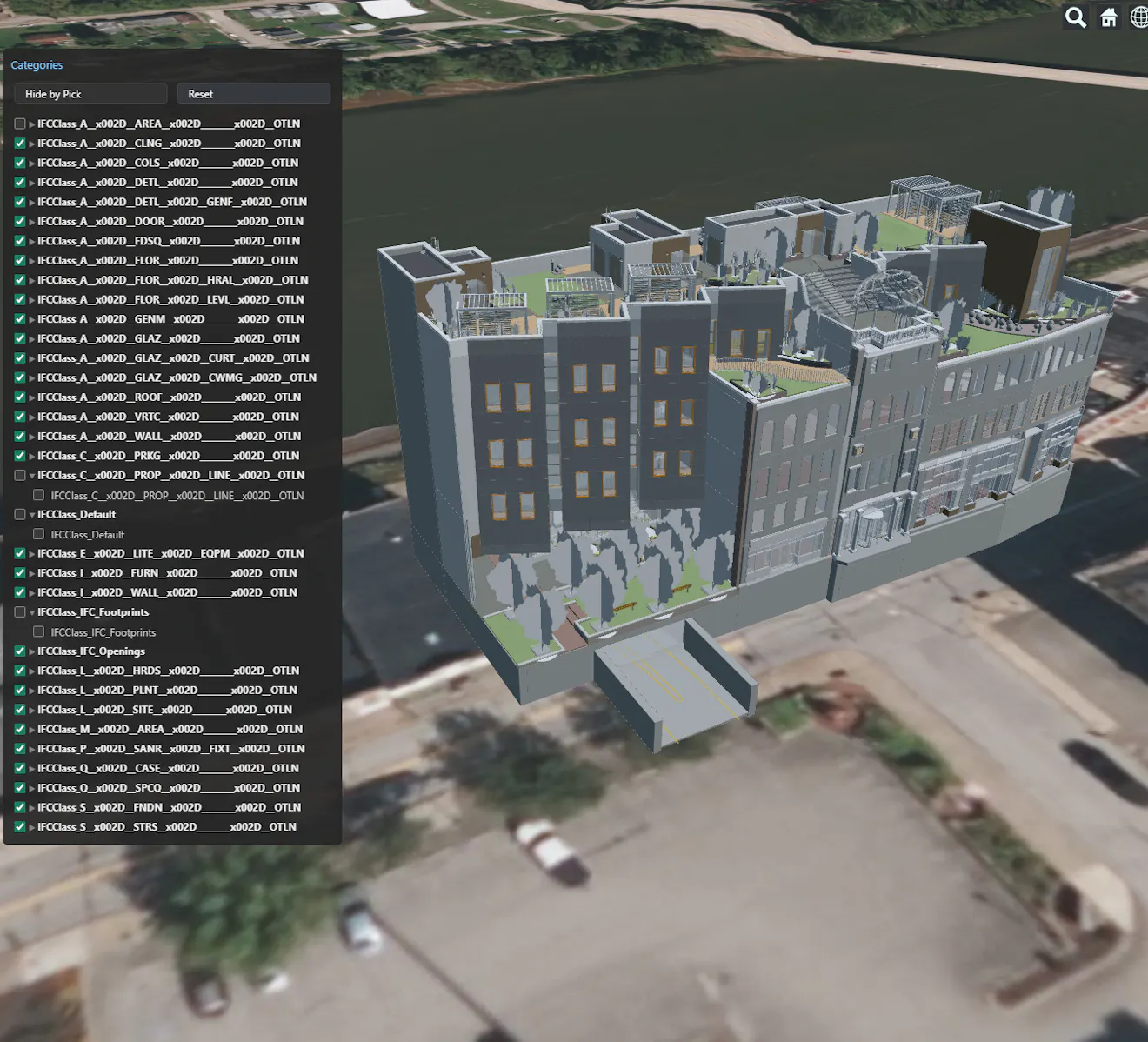

A tileset metadata viewer that:

• Loads a design model and reads category metadata embedded in the tileset
• Builds a collapsible category/subcategory panel from parallel metadata arrays
• Toggles visibility of categories and subcategories using 3D Tiles styling
• Supports CTRL+click to solo (isolate) a single category
• Provides a "Hide by Pick" mode where clicking a feature hides its entire category
• Shows a hover tooltip identifying features by category name

When you upload a design model using the BIM/CAD Tiler with Database, Cesium ion embeds a metadata schema directly in the tileset.json file. This metadata describes the model's structure: which categories of elements exist, what subcategories they contain, and how they map to features in the 3D view.

The key data lives in parallel arrays. Each index across the arrays represents one entry:

• categoryIds / categoryNames - the top-level groupings (Walls, Doors, Floors, etc.)
• subcategoryIds / subcategoryNames / subcategoryParentIds - finer subdivisions within each category

Individual features in the tileset carry two properties: category (a BigInt matching an entry in categoryIds) and subcategory (a BigInt matching an entry in subcategoryIds).

Why parallel arrays? Although tileset.json uses JSON, the 3D Tiles standard doesn't support maps/dictionaries. Parallel arrays provide a compact lookup table that the client can read once on load.

BIM/CAD Tiler with Database Required: Tileset metadata is only generated when you upload using this tiler. If tileset.metadata is undefined, re-upload your model through the BIM/CAD Tiler with Database.

Start by creating a viewer and loading the tileset from Cesium ion.

const ION_ACCESS_TOKEN = "eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJqdGkiOiIyYTNiMTEyNS0wZWZhLTQ2YTYtOGJjYi1jYjYyOTQxN2NiN2UiLCJpZCI6MjU5LCJzdWIiOiJDZXNpdW1KUyIsImlzcyI6Imh0dHBzOi8vYXBpLmNlc2l1bS5jb20iLCJhdWQiOiJEZXNpZ24gSW5nZXN0aW9uIEdUTSIsImlhdCI6MTc3OTc1MDAxM30.pwnHFphGrT_eReSLU-QRmanDIeNTksS64Tp6rrUJheI";
Cesium.Ion.defaultAccessToken = ION_ACCESS_TOKEN;

const ASSET_ID = 4856290; // Snowdon Towers Architectural

const viewer = new Cesium.Viewer("cesiumContainer", {
  timeline: false,
  animation: false,
  baseLayerPicker: false,
});

viewer.scene.setTerrain(Cesium.Terrain.fromWorldTerrain());

let tileset = viewer.scene.primitives.add(
  await Cesium.Cesium3DTileset.fromIonAssetId(ASSET_ID)
);

await viewer.zoomTo(tileset);

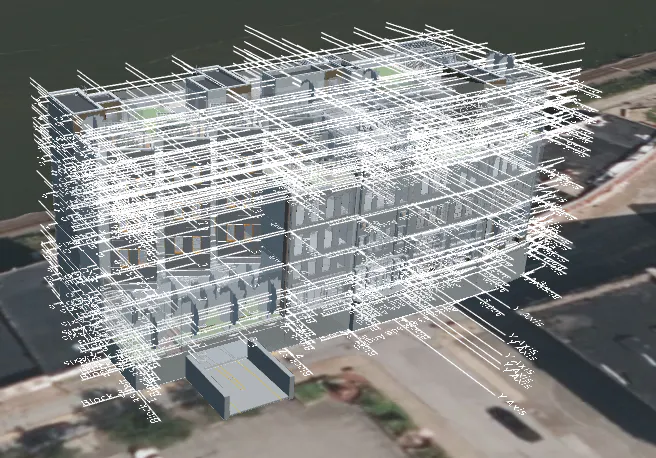

After zoomTo resolves, the tileset is fully loaded and its metadata is available via tileset.metadata.

Dependency: This step uses categoryNameLookup, subsByParent (Step 2), hiddenCategories, hiddenSubcategories, and applyStyle() (Step 3). It also populates allCatCheckboxes, allSubCheckboxes, and catIdToCheckbox for use by Steps 5–6.

Construct the UI: a panel with one row per category. Each row has a checkbox (to toggle visibility) and a clickable label that expands to reveal subcategories. We also maintain tracking arrays so that later features (solo, reset) can update all checkboxes at once.

// Tracking structures for solo and reset functionality
const allCatCheckboxes = [];      // [{catId: BigInt, cb: HTMLInputElement}]
const allSubCheckboxes = [];      // HTMLInputElement[]
const catIdToCheckbox = new Map(); // BigInt categoryId -> HTMLInputElement

// Get panel container (defined in the HTML tab)
const panel = document.getElementById("categoryPanel");

// Deduplicate and sort categories alphabetically
const uniqueCats = new Map();
catIds.forEach((id, i) => {
  if (!uniqueCats.has(id)) uniqueCats.set(id, catNames[i]);
});
const sortedCats = [...uniqueCats.entries()].sort((a, b) => a[1].localeCompare(b[1]));

for (const [catIdStr, catName] of sortedCats) {
  const catId = BigInt(catIdStr);
  const subs = (subsByParent.get(catId) || [])
    .sort((a, b) => a.name.localeCompare(b.name));

  // Create a row div to hold checkbox + label
  const row = document.createElement("div");
  row.className = "cat-row";

  // Create checkbox - toggling adds/removes from hiddenCategories
  const cb = document.createElement("input");
  cb.type = "checkbox";
  cb.checked = true;
  cb.title = "CTRL+click to solo this category";

  // Register in tracking structures
  allCatCheckboxes.push({ catId, cb });
  catIdToCheckbox.set(catId, cb);

  cb.addEventListener("change", function () {
    if (cb.checked) {
      hiddenCategories.delete(catId);
    } else {
      hiddenCategories.add(catId);
    }
    applyStyle();
  });

  // --> Step 5 adds a CTRL+click solo listener here (same `cb`, same loop)

  // Create expandable label (clicking toggles subcategory visibility)
  const label = document.createElement("span");
  label.className = "cat-label";
  label.textContent = catName;

  row.appendChild(cb);
  row.appendChild(label);
  panel.appendChild(row);

  // If this category has subcategories, build a nested list
  if (subs.length > 0) {
    const subsDiv = document.createElement("div");
    subsDiv.className = "subs";

    label.addEventListener("click", function () {
      label.classList.toggle("open");
      subsDiv.classList.toggle("open");
    });

    for (const sub of subs) {
      const subLabel = document.createElement("label");
      const subCb = document.createElement("input");
      subCb.type = "checkbox";
      subCb.checked = true;
      subCb.addEventListener("change", function () {
        if (subCb.checked) {
          hiddenSubcategories.delete(sub.id);
        } else {
          hiddenSubcategories.add(sub.id);
        }
        applyStyle();
      });
      allSubCheckboxes.push(subCb);
      subLabel.appendChild(subCb);
      subLabel.appendChild(document.createTextNode(" " + sub.name));
      subsDiv.appendChild(subLabel);
    }
    panel.appendChild(subsDiv);
  }
}

// Establish the initial style (all visible)
applyStyle();

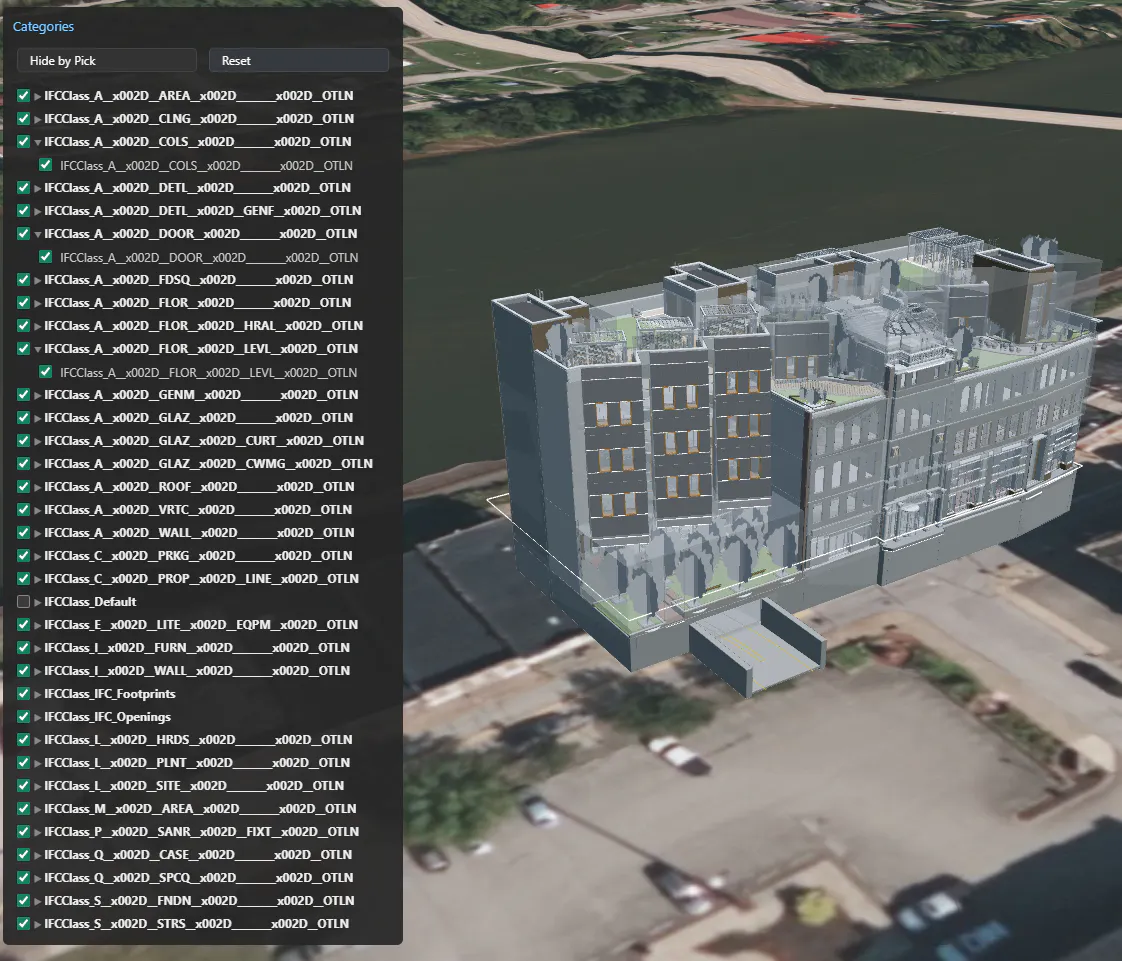

The panel renders immediately after the tileset loads because all category data comes from tileset metadata (no additional API calls needed). This is one of the key advantages of embedded metadata: the UI is ready the moment the model appears.

Dependency: This step adds code inside the Step 4 category loop, on the same cb element, after the change listener. It uses allCatCheckboxes, hiddenCategories (Step 3), and applyStyle() (Step 3).

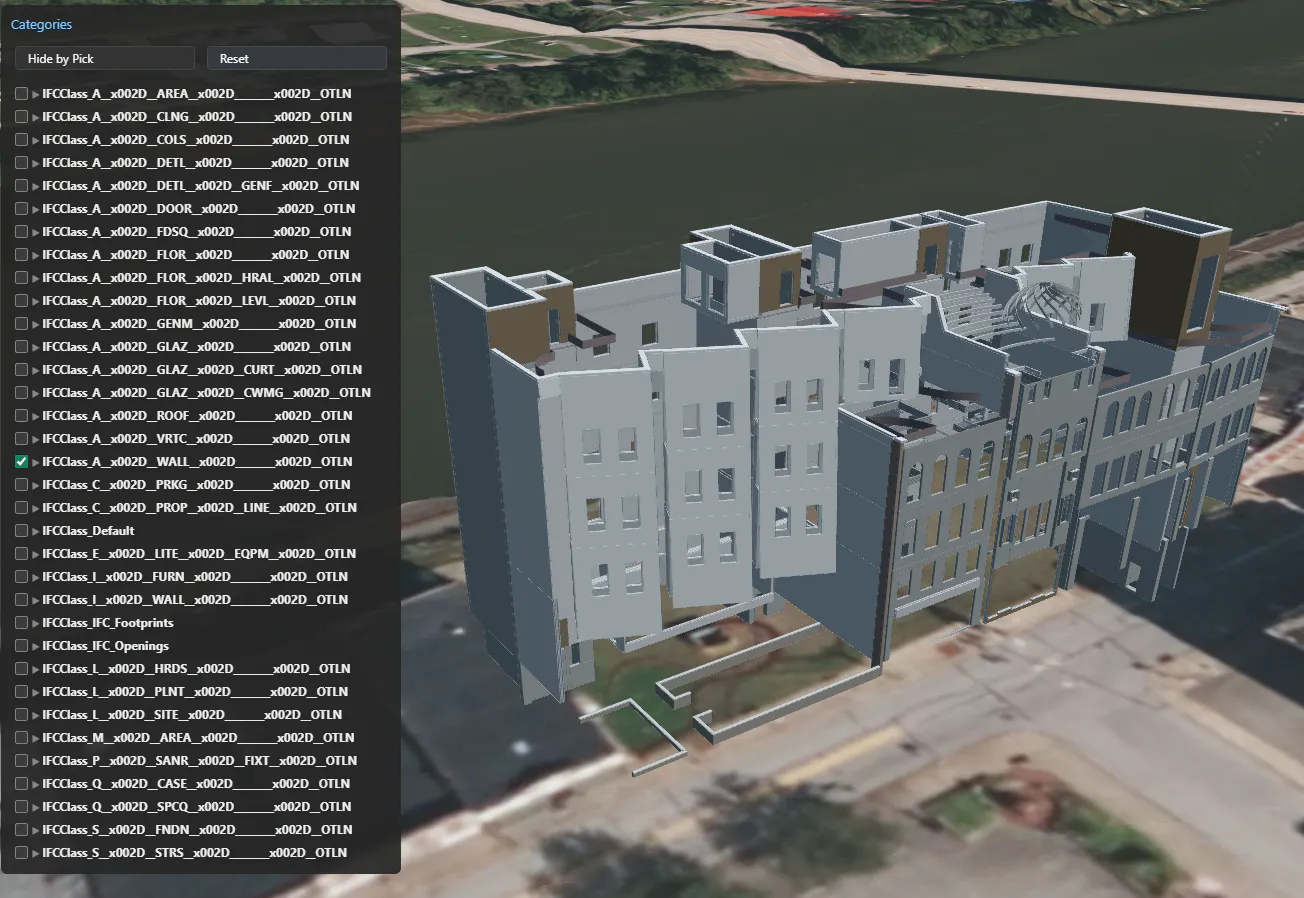

CTRL+clicking a category checkbox isolates that category by hiding everything else. CTRL+clicking again restores all categories. Add this listener to each category checkbox inside the Step 4 loop:

// Add CTRL+click solo behavior (inside the Step 4 loop, on the same `cb`)
cb.addEventListener("click", function (e) {
  if (e.ctrlKey) {
    e.preventDefault();
    const isAlreadySolo =
      hiddenCategories.size === allCatCheckboxes.length - 1 &&
      !hiddenCategories.has(catId);
    if (isAlreadySolo) {
      // Unsolo: show all
      hiddenCategories.clear();
      allCatCheckboxes.forEach((c) => (c.cb.checked = true));
    } else {
      // Solo: hide everything except this one
      hiddenCategories.clear();
      allCatCheckboxes.forEach((c) => {
        if (c.catId === catId) {
          c.cb.checked = true;
        } else {
          hiddenCategories.add(c.catId);
          c.cb.checked = false;
        }
      });
    }
    applyStyle();
  }
});

When soloing, we iterate allCatCheckboxes to set each checkbox's visual state and update hiddenCategories to match. The detection logic checks whether all categories except the current one are already hidden (which means we're undoing a previous solo).

Note: Solo only affects top-level categories. If you had individually hidden subcategories within the soloed category, those remain hidden. The Reset button (Step 6) clears both levels.

UX note: The solo pattern (CTRL+click to isolate, CTRL+click again to restore) is familiar to users of layer-based design tools like Revit, SketchUp, and Photoshop. It provides a fast way to focus on a single system without manually unchecking every other category.

Dependency: This step uses hiddenCategories, categoryNameLookup (Step 2), catIdToCheckbox, allCatCheckboxes, allSubCheckboxes (Step 4), and applyStyle() (Step 3).

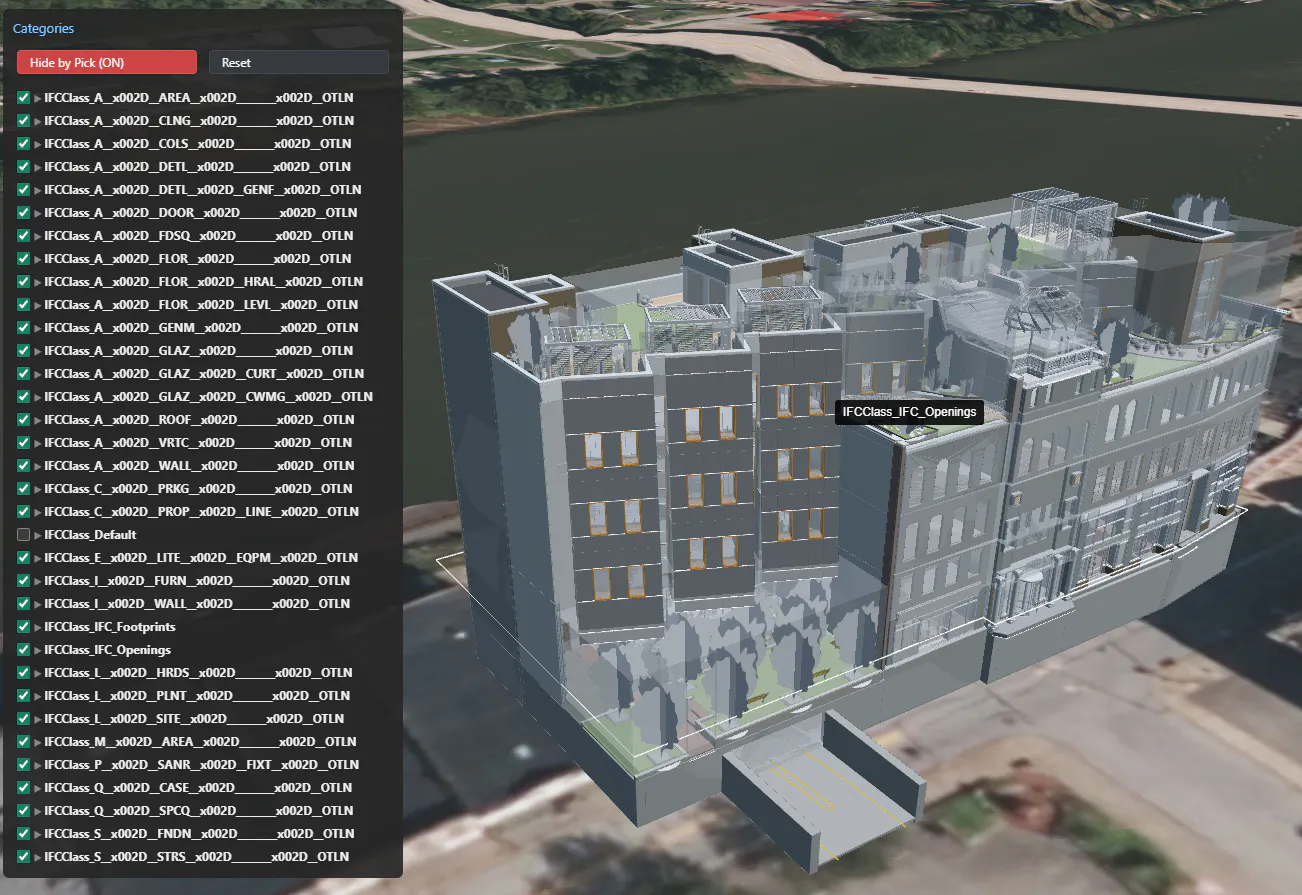

Add a "Hide by Pick" toggle button and a "Reset" button to the panel. When Hide by Pick is active, clicking a feature in the viewport hides its entire category. A hover tooltip shows the category name before the user commits.

First, create the toolbar buttons and hover tooltip:

let hideByPickActive = false;

// Create button row at the top of the panel
const btnRow = document.createElement("div");
btnRow.className = "btn-row";

const pickBtn = document.createElement("button");
pickBtn.textContent = "Hide by Pick";
pickBtn.addEventListener("click", function () {
  hideByPickActive = !hideByPickActive;
  pickBtn.style.background = hideByPickActive ? "#c44" : "#333";
  pickBtn.textContent = hideByPickActive ? "Hide by Pick (ON)" : "Hide by Pick";
  if (!hideByPickActive) hoverLabel.style.display = "none";
});

const resetBtn = document.createElement("button");
resetBtn.textContent = "Reset";
resetBtn.addEventListener("click", function () {
  hiddenCategories.clear();
  hiddenSubcategories.clear();
  allCatCheckboxes.forEach((c) => (c.cb.checked = true));
  allSubCheckboxes.forEach((cb) => (cb.checked = true));
  applyStyle();
});

btnRow.appendChild(pickBtn);
btnRow.appendChild(resetBtn);
panel.insertBefore(btnRow, panel.querySelector(".cat-row"));

// Create hover tooltip element
const hoverLabel = document.createElement("div");
hoverLabel.style.cssText = "position:fixed; padding:4px 8px; background:rgba(0,0,0,0.85); color:#fff; font-size:12px; pointer-events:none; display:none; z-index:1000; border-radius:3px; white-space:nowrap;";
document.body.appendChild(hoverLabel);

Now wire up the event handlers. The Viewer provides a built-in screenSpaceEventHandler on its canvas, so we don't need to create a new one:

// Click: hide the picked feature's category (when active)
viewer.screenSpaceEventHandler.setInputAction(function (movement) {
  if (!hideByPickActive) return;
  if (!tileset) return;
  const feature = viewer.scene.pick(movement.position);
  if (!Cesium.defined(feature) || !(feature instanceof Cesium.Cesium3DTileFeature)) return;

  const catId = feature.getProperty("category"); // BigInt
  hiddenCategories.add(catId);
  const cb = catIdToCheckbox.get(catId); // Map is BigInt-keyed (Step 4)
  if (cb) cb.checked = false;
  applyStyle();
}, Cesium.ScreenSpaceEventType.LEFT_CLICK);

// Hover: show tooltip with category name
viewer.screenSpaceEventHandler.setInputAction(function (movement) {
  if (!hideByPickActive) {
    hoverLabel.style.display = "none";
    return;
  }
  if (!tileset) return;
  const feature = viewer.scene.pick(movement.endPosition);
  if (Cesium.defined(feature) && feature instanceof Cesium.Cesium3DTileFeature) {
    const catId = feature.getProperty("category");
    const catName = categoryNameLookup.get(catId) || "Unknown";
    hoverLabel.textContent = catName;
    hoverLabel.style.display = "block";
    hoverLabel.style.left = (movement.endPosition.x + 15) + "px";
    hoverLabel.style.top = (movement.endPosition.y + 5) + "px";
  } else {
    hoverLabel.style.display = "none";
  }
}, Cesium.ScreenSpaceEventType.MOUSE_MOVE);

When Hide by Pick is inactive, the click handler returns immediately without altering the scene. Note that setInputAction replaces any previous handler for that event type on the same handler instance. Since this demo only uses tile features (not entities), this has no side effects here.
