Working with the Asset Elements API

• Familiarity with CesiumJS basics (Viewer, 3D Tiles, entities)
• Completion of Working with Tileset Metadata from Design Ingestion is recommended but not required
• Familiarity with Cesium Sandcastle
• A basic understanding of RESTful APIs
• This tutorial uses the Snowdon Towers Sample Architectural model as its sample data. A scoped access token and asset ID are included in the code below, so no Cesium ion account is needed to follow along.

What you'll build

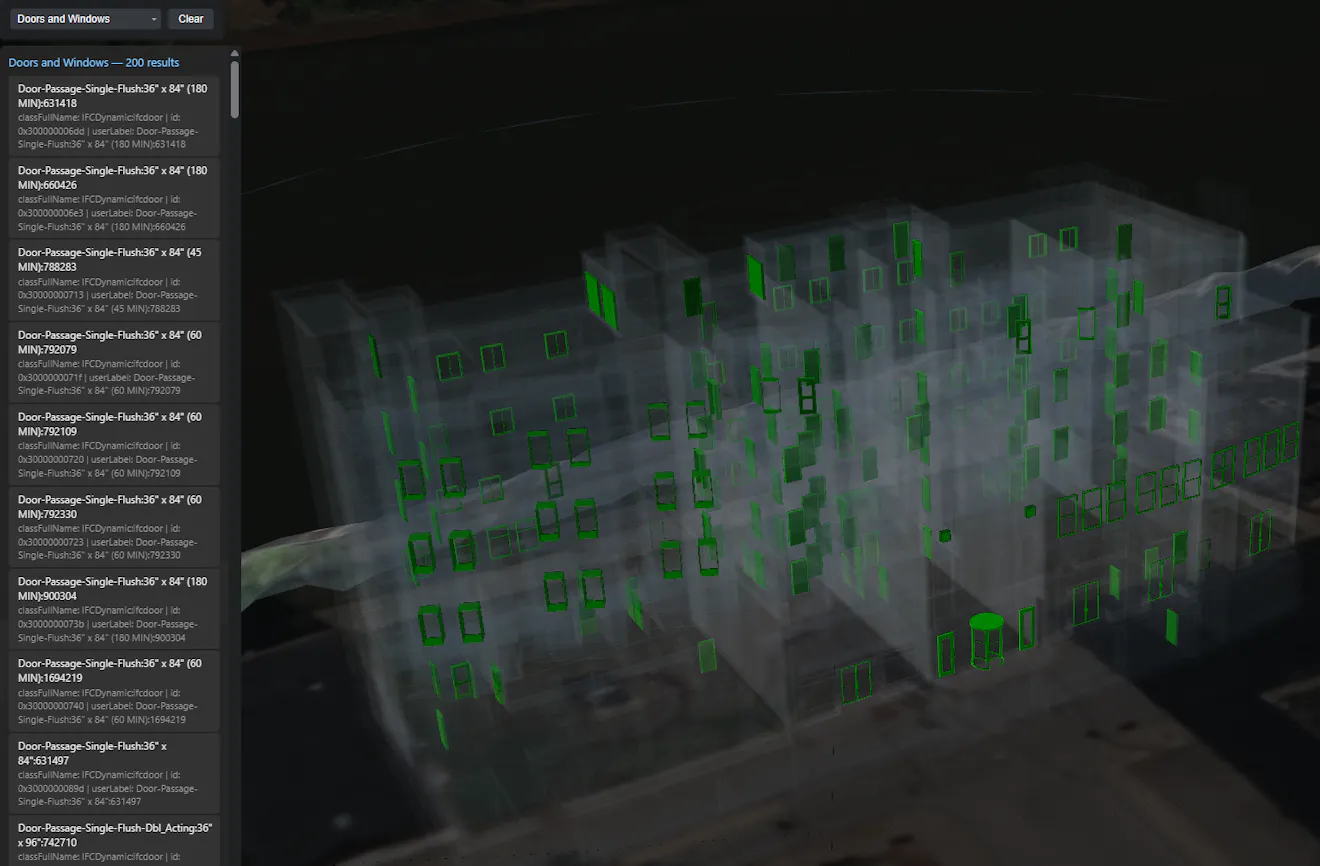

A combined pick-and-query viewer that:

• Lets users click any element to fetch and display its full property set
• Highlights hovered and selected elements with distinct colors
• Deselects elements when clicking empty space

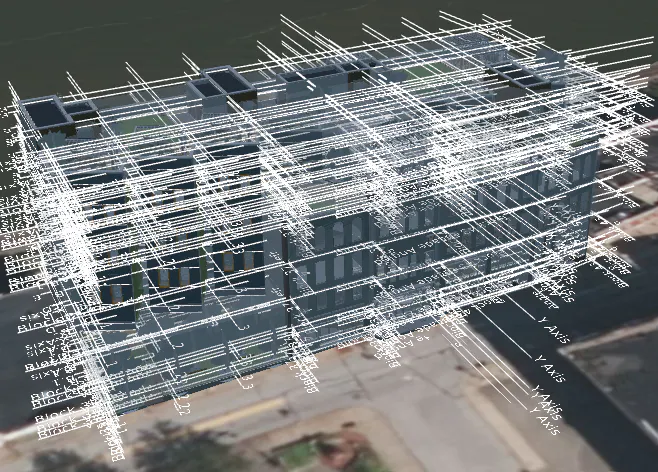

• Hides 2D grid lines that clutter the 3D view
• Queries elements by property using SQL or JSON filter syntax
• Shows progressive results in a scrollable panel
• Flies the camera to an element's geographic location when selected from the result panel

Introduction to the Asset Elements API

The Asset Elements API is a REST API that provides detailed properties for individual elements in your design model. While Working with Tileset Metadata from Design Ingestion describes the model as a whole, the Elements API lets you drill into any single element and retrieve its complete property set from the source file.

Base URL: https://api.cesium.com/assets/{assetId}/elements

Authentication: Bearer token in the Authorization header.

Key endpoints:

• GET /assets/{assetId}/elements - List/query elements (paginated)
• GET /assets/{assetId}/elements/{elementId} - Get a single element by ID

You can find further documentation here.

What is an "element"? An element represents a single object from your source design file, such as a wall, door, or column. While a tileset may split an element across multiple rendered features for efficient streaming, the element ID links them all back to the same source object and its complete property set.

How to follow this tutorial

Each step below teaches one concept and shows its code in isolation. Variables and functions introduced in one step may reference those from other steps (dependency callouts note these). The steps build on each other. The complete working Sandcastle combines everything into a single runnable application.

The companion HTML file provides the HTML elements to display the results UI. Copy the contents of the file into the HTML/CSS tab in Cesium Sandcastle if you are following along.

1Load the design model

Dependency: This step uses selectedElementId (Step 3), matchedElementIds (Step 5), and selectElement() (Step 6). The complete code ties everything together.

Each rendered feature in a 3D Tiles model carries an element property: a BigInt value that identifies which source element it belongs to. To fetch the properties for that element, we pass its BigInt element ID to the single-element endpoint.

A single-element response looks like this:

{
  "id": "2199023257263",
  "properties": {
    "iFCClassName": "ifcwall",
    "userLabel": "Basic Wall:Exterior - Brick on CMU",
    "footprintArea": 128.5,
    "volume": 412.3,
    "material": "Brick, Common"
  },
  "location": {
    "center": { "longitude": -75.596, "latitude": 40.039, "height": 12.5 },
    "radius": 3.2
  }
}

The location.center is in WGS84 degrees/meters and location.radius is the bounding sphere radius in meters.

Element ID typing

Feature properties store element IDs as BigInt values (e.g. 8589934767n). The API uses decimal string identifiers (e.g., "2199023257263"). Since BigInt auto-converts to a decimal string in template literals, no conversion function is needed. When receiving IDs from API responses (strings), convert them to BigInt at the boundary with `BigInt(el.id)` so Set lookups and equality checks work correctly.

Click handler

Wire up a click handler that picks the feature under the cursor, reads its element ID, and calls the API. We use the viewer's built-in screenSpaceEventHandler rather than creating a new one to avoid event conflicts. Clicking empty space deselects the current element:

// A reusable entity for displaying element properties in the InfoBox
const elementPropertiesEntity = new Cesium.Entity({ name: "Element", show: false });
viewer.entities.add(elementPropertiesEntity);

viewer.screenSpaceEventHandler.setInputAction(async function (movement) {
  const feature = viewer.scene.pick(movement.position);
  if (!Cesium.defined(feature) || !(feature instanceof Cesium.Cesium3DTileFeature)) {
    // Clicked empty space: clear selection (but keep query highlights)
    if (selectedElementId) {
      selectedElementId = null;
      viewer.selectedEntity = undefined;
      if (tileset) tileset.makeStyleDirty();
      if (matchedElementIds.size === 0) {
        viewer.scene.globe.translucency.frontFaceAlpha = 1.0;
      }
    }
    return;
  }

  // Read the element ID from the feature
  const rawId = feature.getProperty("element");
  if (!Cesium.defined(rawId)) return;

  // Select without flying (flyTo is only used from the result panel)
  await selectElement(rawId, null, { flyTo: false });
}, Cesium.ScreenSpaceEventType.LEFT_CLICK);

The buildDescription helper converts an element's properties object into an HTML table for the InfoBox:

function buildDescription(properties) {
  const rows = Object.entries(properties)
    .map(([key, value]) => `<tr><td><b>${key}</b></td><td>${value}</td></tr>`)
    .join("");
  return `<table class="cesium-infoBox-defaultTable"><tbody>${rows}</tbody></table>`;
}

Feature properties vs API properties: The properties embedded in tiles (accessed via feature.getProperty()) are a minimal subset, kept small to optimize streaming performance. The API returns the complete property set from the source model. This is why the API exists: detailed per-element data is served on-demand rather than inflating every tiles payload.

3Highlight the selected element

Dependency: This step uses hiddenElementIds (Step 4) and matchedElementIds (Step 5) in the style callback. These Sets are empty initially, so the style logic handles them gracefully before those steps run.

Add visual feedback so the user can see which element is selected. We track two states: a hover highlight (cyan, temporary) and a selection highlight (yellow, persistent). Non-selected elements fade to near-transparent when something is selected.

let selectedElementId = null; // BigInt or null
let hoveredElementId = null;  // BigInt or null

function applyStyle() {
  const style = new Cesium.Cesium3DTileStyle();
  style.color = {
    evaluateColor: function (feature, result) {
      const id = feature.getProperty("element");

      // Hidden elements (2D cleanup): fully transparent
      if (hiddenElementIds.has(id)) {
        return Cesium.Color.clone(Cesium.Color.TRANSPARENT, result);
      }
      // Selected element: yellow highlight
      if (id === selectedElementId) {
        return Cesium.Color.clone(Cesium.Color.YELLOW, result);
      }
      // Hovered element: cyan highlight
      if (id === hoveredElementId) {
        return Cesium.Color.clone(Cesium.Color.CYAN.withAlpha(0.7), result);
      }
      // Query match: green highlight
      if (matchedElementIds.size > 0 && matchedElementIds.has(id)) {
        return Cesium.Color.clone(Cesium.Color.LIME, result);
      }
      // Faded when a selection or query is active
      if (selectedElementId || matchedElementIds.size > 0) {
        return Cesium.Color.clone(Cesium.Color.WHITE.withAlpha(0.02), result);
      }
      // Default: full color
      return Cesium.Color.clone(Cesium.Color.WHITE, result);
    },
  };
  tileset.style = style;
}

Call applyStyle() once after the tileset loads to assign the style object. After that, call tileset.makeStyleDirty() whenever state changes (selection, hover, query results) to re-evaluate the existing callbacks without the overhead of parsing a new style:

applyStyle(); // Call once after tileset loads

Note that hidden elements (from the 2D cleanup in Step 4) are handled here too, using TRANSPARENT color. This single evaluateColor callback manages all visual states: hidden, selected, hovered, query-matched, and default.

Add a hover handler to preview which element the cursor is over:

viewer.screenSpaceEventHandler.setInputAction(function (movement) {
  const feature = viewer.scene.pick(movement.endPosition);
  if (Cesium.defined(feature) && feature instanceof Cesium.Cesium3DTileFeature) {
    const rawId = feature.getProperty("element");
    if (Cesium.defined(rawId)) {
      if (rawId !== hoveredElementId) {
        hoveredElementId = id;
        if (tileset) tileset.makeStyleDirty();
      }
      return;
    }
  }
  if (hoveredElementId !== null) {
    hoveredElementId = null;
    if (tileset) tileset.makeStyleDirty();
  }
}, Cesium.ScreenSpaceEventType.MOUSE_MOVE);

Why evaluateColor instead of style conditions? For small result sets, declarative style conditions are sufficient. However as the number of highlighted elements grows (hundreds or thousands of query matches), evaluating a long list of conditions per feature becomes expensive. A JavaScript evaluateColor callback with lookups scales far better for large queries. Note that we call tileset.makeStyleDirty() whenever state changes rather than reassigning the style object. This tells CesiumJS to re-evaluate the existing style without the overhead of parsing a new one.

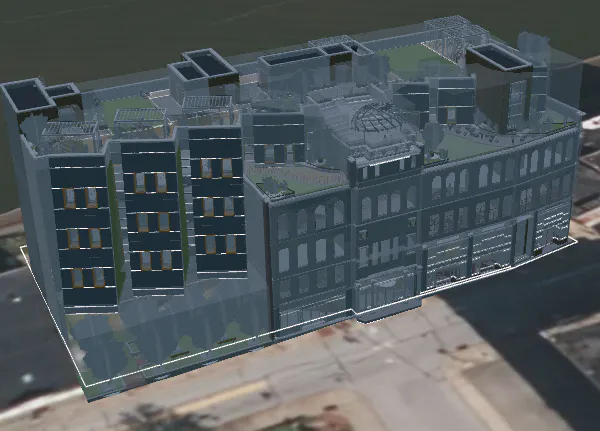

4Clean up 2D content

JSON filter examples

Paginated query function

Before building the query logic, define the pre-built queries we'll offer. Each object has a label (for display), a style ("sql" or "json"), and the corresponding query payload:

const QUERIES = [
  {
    label: "All Walls (SQL)",
    style: "sql",
    where: "iFCClassName = 'ifcwall'",
  },
  {
    label: "All Walls (JSON)",
    style: "json",
    filter: { iFCClassName: "ifcwall" },
  },
  {
    label: "Large Spaces > 450 sq ft",
    style: "sql",
    where: "iFCClassName = 'ifcspace' AND footprintArea > 450",
  },
  {
    label: "Doors and Windows",
    style: "json",
    filter: { iFCClassName: { $in: ["ifcdoor", "ifcwindow"] } },
  },
  {
    label: "Labels containing 'Exterior'",
    style: "sql",
    where: "userLabel LIKE '%Exterior%'",
  },
  {
    label: "Structural Elements",
    style: "json",
    filter: {
      iFCClassName: { $in: ["ifccolumn", "ifcbeam", "ifcslab", "ifcfooting"] },
    },
  },
];

We also need references to the DOM elements for the result panel (defined in the HTML):

const resultPanel = document.getElementById("resultPanel");
const resultHeader = document.getElementById("resultHeader");
const resultsList = document.getElementById("resultsList");

The API returns results in pages. We follow Link headers to get all pages, calling an onPage callback as each page arrives for progressive rendering:

async function queryElements(assetId, options = {}) {
  const { where, filter, limit = 1000, signal, onPage } = options;

  // Build query parameters
  const params = new URLSearchParams();
  if (where) params.set("where", where);
  if (filter) params.set("filter", JSON.stringify(filter));
  params.set("limit", String(limit));
  let nextUrl = `${ELEMENTS_API_BASE}/assets/${assetId}/elements?${params}`;

  let totalFetched = 0;
  let totalElements;

  while (nextUrl) {
    const resp = await fetch(nextUrl, {
      headers: { Authorization: `Bearer ${ION_ACCESS_TOKEN}` },
      signal,
    });
    if (!resp.ok) throw new Error(`Query failed: HTTP ${resp.status}`);
    const data = await resp.json();

    totalFetched += data.items.length;
    if (data.total !== undefined) totalElements = data.total;

    // Notify caller of this page for progressive rendering
    if (onPage) {
      onPage(data.items, totalFetched, totalElements);
    }

    nextUrl = parseLinkHeader(resp.headers.get("Link"));
  }

  return { total: totalElements ?? totalFetched };
}

Running a query

To execute a query, cancel any in-flight request, clear previous results, and start fetching:

let activeQueryController = null;
const matchedElementIds = new Set(); // BigInt element IDs of matched elements

async function runQuery(query) {
  // Cancel previous query if still running
  if (activeQueryController) activeQueryController.abort();
  activeQueryController = new AbortController();

  // Clear previous state
  selectedElementId = null;
  matchedElementIds.clear();
  if (tileset) tileset.makeStyleDirty();
  viewer.selectedEntity = undefined;
  resultsList.innerHTML = "";

  // Fade the globe for better visibility
  viewer.scene.globe.translucency.frontFaceAlpha = 0.25;
  resultPanel.style.display = "block";
  resultHeader.textContent = `${query.label} - loading...`;

  try {
    const params = {};
    if (query.style === "sql") params.where = query.where;
    if (query.style === "json") params.filter = query.filter;

    const result = await queryElements(ASSET_ID, {
      ...params,
      signal: activeQueryController.signal,
      onPage(pageItems, totalSoFar, totalElements) {
        // Add matched IDs for highlighting
        for (const el of pageItems) matchedElementIds.add(BigInt(el.id));
        if (tileset) tileset.makeStyleDirty();

        // Progressively render results in the panel
        appendResultItems(pageItems);

        const totalLabel = totalElements !== undefined ? ` of ${totalElements}` : "";
        resultHeader.textContent = `${query.label} - ${totalSoFar}${totalLabel} results`;
      },
    });

    resultHeader.textContent = `${query.label} - ${result.total} result${result.total !== 1 ? "s" : ""}`;
  } catch (err) {
    if (err.name === "AbortError") return;
    resultHeader.textContent = `Error: ${err.message}`;
  }
}

Clearing results

When the user switches queries or wants to reset, clear all state and restore the default view:

function clearResults() {
  if (activeQueryController) activeQueryController.abort();
  selectedElementId = null;
  matchedElementIds.clear();
  resultsList.innerHTML = "";
  resultPanel.style.display = "none";
  viewer.scene.globe.translucency.frontFaceAlpha = 1.0;
  viewer.selectedEntity = undefined;
  if (tileset) tileset.makeStyleDirty();
}

Which query style should I use? Both produce identical results. SQL WHERE may feel more natural if you have database experience. JSON filter is easier to compose programmatically (no string concatenation or SQL injection concerns).

6Display results and navigate to elements

Show each result in a clickable list. Clicking an item highlights it in the viewer, fetches its properties, and flies the camera to its location.

Building the result list

function appendResultItems(items) {
  for (const el of items) {
    const li = document.createElement("li");

    const label = document.createElement("div");
    label.className = "result-label";
    label.textContent = el.properties?.userLabel || el.properties?.iFCClassName || el.id;
    li.appendChild(label);

    const detail = document.createElement("div");
    detail.className = "result-detail";
    const props = el.properties ? Object.entries(el.properties).slice(0, 3) : [];
    detail.textContent = props.map(([k, v]) => `${k}: ${v}`).join(" | ");
    li.appendChild(detail);

    li.addEventListener("click", () => selectElement(BigInt(el.id), el.location));
    resultsList.appendChild(li);
  }
}

Selecting and flying to an element

When the user clicks a result in the panel, highlight it, fly the camera to its location, and fetch it's properties. The flyTo option controls whether camera navigation happens: clicking directly on the model only highlights (the user already sees the element), while clicking a result item in the panel flies to it.

async function selectElement(elementId, location, options = {}) {
  const { flyTo = true } = options;
  selectedElementId = elementId;
  if (tileset) tileset.makeStyleDirty();
  viewer.scene.globe.translucency.frontFaceAlpha = 0.25;

  // Fly to the element's location (with proximity validation)
  if (flyTo) {
    const center = location?.center;
    if (isLocationValid(center)) {
      flyToSphere(center.longitude, center.latitude, center.height, location.radius || 5);
    } else {
      viewer.zoomTo(tileset);
    }
  }

  // Fetch and display element properties in InfoBox
  elementPropertiesEntity.name = `Element ${elementId}`;
  elementPropertiesEntity.description = "Loading...";
  elementPropertiesEntity.show = true;
  viewer.selectedEntity = elementPropertiesEntity;

  try {
    const url = `${ELEMENTS_API_BASE}/assets/${ASSET_ID}/elements/${encodeURIComponent(elementId)}`;
    const resp = await fetch(url, {
      headers: { Authorization: `Bearer ${ION_ACCESS_TOKEN}` },
    });
    if (!resp.ok) throw new Error(`HTTP ${resp.status}`);
    const element = await resp.json();
    elementPropertiesEntity.description = buildDescription(element.properties || {});
  } catch (err) {
    elementPropertiesEntity.description = `<p style="color:#ff6b6b;">Error: ${err.message}</p>`;
  }

  // Force InfoBox refresh by toggling selectedEntity
  viewer.selectedEntity = undefined;
  viewer.selectedEntity = elementPropertiesEntity;
}

Proximity validation

Element locations come from the source model's coordinate system, transformed to WGS84 during ingestion. If the coordinate reference system was misconfigured, the location might be far from the actual tileset. A proximity check prevents the camera from flying to the wrong hemisphere:

function isLocationValid(center) {
  if (!tileset) return false;
  if (!center) return false;
  if (!Number.isFinite(center.longitude) || !Number.isFinite(center.latitude)) return false;
  // Reject (0,0) - "null island" indicates missing/invalid CRS during ingestion
  if (center.longitude === 0 && center.latitude === 0) return false;

  // Check if the location is within 5x the tileset's bounding sphere radius
  const elementCartesian = Cesium.Cartesian3.fromDegrees(
    center.longitude,
    center.latitude,
    center.height || 0
  );
  const distance = Cesium.Cartesian3.distance(elementCartesian, tileset.boundingSphere.center);
  const maxDistance = Math.max(tileset.boundingSphere.radius * 5, 1000);
  return distance <= maxDistance;
}

The flyToSphere helper uses flyToBoundingSphere to automatically scale the camera distance based on the element's radius, so small elements get a close-up and large elements a wider view:

function flyToSphere(lon, lat, height, radius) {
  const center = Cesium.Cartesian3.fromDegrees(lon, lat, height);
  const boundingSphere = new Cesium.BoundingSphere(center, radius * 1.5);
  viewer.camera.flyToBoundingSphere(boundingSphere, {
    offset: new Cesium.HeadingPitchRange(0, Cesium.Math.toRadians(-30), 0),
    duration: 2,
  });
}

What's next

• Bring your own data: To use this workflow with your own models, you'll need a Cesium ion account, an access token with assets:read scope, and a design model uploaded through the BIM/CAD Tiler with Database and georeferenced with an EPSG code and vertical datum. Replace the ASSET_ID and ION_ACCESS_TOKEN constants with your own values.
• Assembly selection: If your model contains hierarchical assemblies (curtain walls, stair systems), you can query for parent elements and highlight all their child components. This capability depends on parent/child relationship data in the API, which may be available in future releases.
• Cross-model queries: Query elements across multiple tilesets from the same project to find all structural columns, then cross-reference with architectural spaces.
• Data-driven dashboards: Combine query results with charting libraries to visualize element distributions, material quantities, or space utilization.

Troubleshooting

Summary
